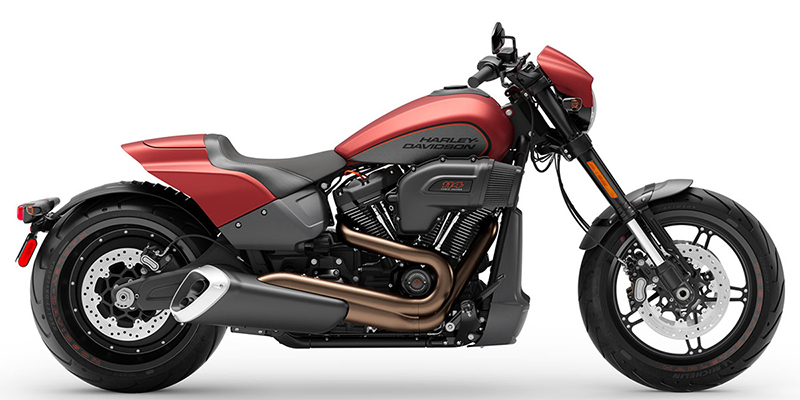

2019 Harley-Davidson Softail® FXDR™ 114

Check Availability
Hi, my name is and I'm interested in this 2019 Harley-Davidson Softail® FXDR™ 114 . I'm in the area and you can reach me at or by phone at .
Details

FXDR™ 114
The all-new FXDR™ 114 is a feast for the eyes with performance and attitude that’s off the leash. Fast on the straights. Agile in the corners. It'll blow away your senses.

LIVE ON THE EDGE OF THE ENVELOPE

Milwaukee-Eight 114 Engine
Loads of torque for blasting off from stoplights, hitting entrance ramps, and rolling on the passing power. Pure sound with a soul-satisfying rumble.

Minimal Weight for Maximum Performance
Designed with a number of alloy and composite components to reduce the overall weight, including an all-new aluminum swingarm and subframe. Maximizes acceleration, braking and handling performance.

Bold 2-into-1 Exhaust
Tuned to emit a throaty rumble. Plus dramatic performance-inspired design that won’t interfere with lean angle.

Racing-Style Fork
Inverted race-style design, with single-cartridge technology that improves response to steering input and braking and handling performance.

New Air Intake
Inspired by Screamin’ Eagle NHRA drag bikes and shaped to enhance air flow to the engine. A fresh interpretation of the Heavy Breather with an exposed, forward-facing filter element.

Softail Frame
A reinvented Softail frame that gives you more agility than you ever imagined from a bike carrying this much dragster attitude.

High Performance Rear Mono Shock
Easily adjustable mono-shock rear suspension allows for dynamic cornering, quick acceleration and braking while preserving the hardtail look.

Stretched Fuel Tank
A sleek design that lengthens the profile of the bike to give it an aggressive look.

Modern Technologies
You get a LED Daymaker™ headlamp, LED rear lighting and LED turn signals; digital riser gauge, and a keyless ignition.



Engine

  • Engine Brand Name:
    Milwaukee-Eight™ 114
  • Engine Type:
    V Twin
  • Cylinders:
    2
  • Engine Stroke:
    4-Stroke
  • Horsepower (bhp):
    90
  • Horsepower (kW):
    67.2
  • Torque (Ft Lbs):
    119
  • Torque (Nm):
    161.3
  • Torque RPM:
    3500
  • Cooling:
    Oil
  • Valves:
    4
  • Valves Per Cylinder:
    2
  • Valve Configuration:
    OHV - Pushrod
  • Bore (mm):
    102.1
  • Bore (in):
    4.02
  • Stroke (mm):
    114.3
  • Stroke (in):
    4.5
  • Displacement (cc):
    1868
  • Displacement (ci):
    114
  • Compression Ratio:
    10.5:1
  • Starter:
    Electric
  • Fuel Requirements:
    Premium
  • US Miles Per Gallon (Combined):
    46
  • CAN Liters Per Kilometer (Combined):
    5.1
  • Fuel Type:
    Gas

Brakes

  • Front Brake Type:
    Dual Hydraulic Disc
  • Front Brake Diameter (in):
    11.8
  • Front Brake Diameter (mm):
    300
  • Rear Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    11.5
  • Rear Brake Diameter (mm):
    292

Carburetion

  • Fuel Injector:
    Yes
  • Carburetion Type:
    Fuel Injected

Dimensions

  • Length (in):
    95.1
  • Length (mm):
    2416
  • Width (in):
    36.6
  • Width (mm):
    929
  • Height (in):
    42.6
  • Height (mm):
    1082
  • Wheelbase (in):
    68.4
  • Wheelbase (mm):
    1737
  • Ground Clearance (in):
    5.3
  • Ground Clearance (mm):
    134
  • Length (ft):
    7.92
  • Length (ft/ft):
    7
  • Length (ft/in):
    11.1

Other

  • Fuel Capacity (gal):
    4.4
  • Fuel Capacity (l):
    16.7
  • Frame:
    Aluminum / Steel
  • Body Material:
    Steel
  • Engine Immobilizer Brand:
    Digitally Encoded Security System™ (DESS)
  • Side Cover:
    Yes
  • Belt Guard:
    Yes
  • Foot Peg Location:
    Driver
  • Front Suspension Type:
    Inverted Fork
  • Front Suspension Size (in):
    1.7
  • Front Suspension Size (mm):
    43
  • Fuel Level Warning Type:
    Gauge
  • SysModelID:
    85629
  • MfrModelID:
    FXDRS
  • Year:
    2019
  • Manufacturer:
    Harley-Davidson
  • Model Name:
    Softail®
  • Trim Name:
    FXDR™ 114
  • Family Name:
    Softail®
  • Product Type:
    Motorcycle / Scooter
  • Manufacturer Type:
    Softail®
  • Generic Type (Primary):
    Cruiser
  • Manufacturer Country:
    USA
  • Photo Name:
  • Major Revision Year:
    2019
  • Revision Status:
    New
  • Competitor Code:
    MOT19CIA000
  • Introduction Year:
    2019
  • Manufacturer Recommend Minimum Age:
    16
  • SysTrimId:
    244175
  • SysMakeId:
    10
  • Data Provider:
    CRS
  • Parent Company:
    Harley-Davidson
  • Display Name:
    FXDR™ 114
  • Engine Displacement to Weight (cc):
    2.93
  • Currency:
    US Dollars
  • Warranty (Months):
    24
  • Destination Charge:
    390
  • Warranty (Condition):
    Limited
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Adjustable Rebound Damping:
    Yes
  • Number Rear Shock Absorbers:
    1
  • Rear Suspension Material:
    Aluminum
  • Air Adjustable:
    Yes
  • Folding:
    Yes
  • Seat Type:
    One-Piece
  • Seat Material:
    Leather
  • Seat Location:
    Driver
  • Seat Height (in):
    28.5
  • Seat Height (mm):
    723.9
  • Number Of Seats:
    1
  • Stand Type:
    Kick
  • Steering Control:
    Handlebar
  • Front Tire Width:
    120
  • Front Tire Aspect Ratio:
    70
  • Front Tire Speed Rating:
    W
  • Front Wheel Diameter:
    19
  • Rear Tire Width:
    240
  • Rear Tire Aspect Ratio:
    40
  • Rear Tire Speed Rating:
    V
  • Rear Wheel Diameter:
    18
  • Front Tire (Full Spec):
    120/70 ZR19 60W
  • Rear Tire (Full Spec):
    240/40 R18 79V
  • Wheels Composition:
    Aluminum
  • Type:
    LED
