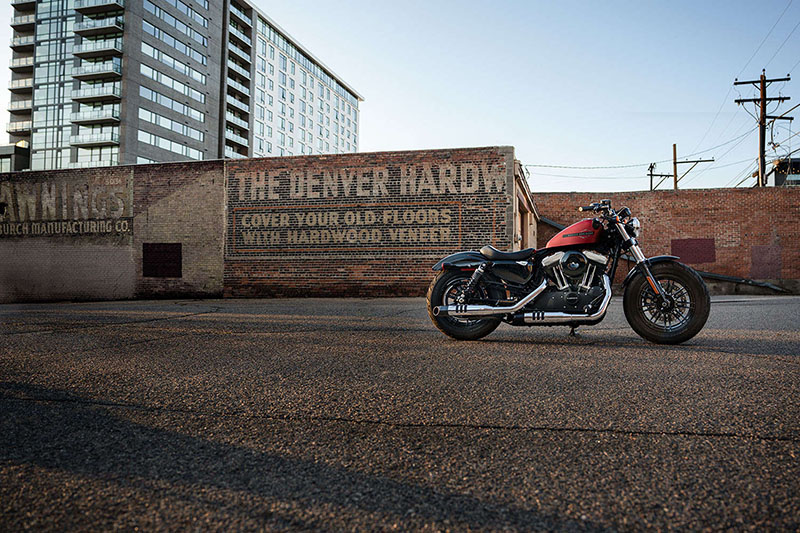

2019 Harley-Davidson Sportster® Forty-Eight®

Check Availability
Hi, my name is and I'm interested in this 2019 Harley-Davidson Sportster® Forty-Eight® . I'm in the area and you can reach me at or by phone at .
Details

FORTY-EIGHT®
Heavy-hitting style with fat tires and an iconic peanut tank. Designed with its signature bulldog stance and 1200cc of corner cranking torque.

WE DIDN’T REBUILD IT. WE RELOADED IT.

1200 cc Air-Cooled Evolution Engine
An iconic V-Twin engine that is renowned for its massive low-end torque and soul-satisfying sound. Lightweight aluminum heads and cylinders improve air-cooling efficiency.

Fat Front Wheel
Custom rubber reminiscent of the lead-sled culture. You get a beefy front end with a tall, fat MT90 tire that gives the bike a dominating presence up front and provides a smooth ride and solid handling.

49mm Fork with Cartridge Dampening
The brawny 49mm front fork is accentuated by massive triple clamps and fork brace. We’ve also added cartridge damping technology to keep the handling crisp and confident, no matter how rough or winding the road ahead.

Emulsion Rear Shock with Screw Adjuster
Features an Emulsion rear shock with a screw pre-load adjuster that soaks up every bump the street throws your way, and easily adjusts to fit your riding style.

Split 9-Spoke Cast Aluminum Wheels
A set of black hardcore rims with added machined highlights to set off the design. They’re built of lightweight cast aluminium, so even with the plentitude of fat black rubber rolling underneath the ride feels light and nimble.

Foundation Brake System
An innovative, high-performing system that gives riders more confidence on the road and more power and predictability when you squeeze the brakes.

Iconic 2.1 Gallon Fuel Tank
A classic peanut fuel tank design that adds to the machine's low, powerful bulldog look, showing off the solid mass of the engine and the rawboned style of the lean Sportster frame.

Engine

  • Engine Brand Name:
    Evolution®
  • Engine Type:
    V Twin
  • Cylinders:
    2
  • Engine Stroke:
    4-Stroke
  • Torque (Ft Lbs):
    73
  • Torque (Nm):
    99
  • Torque RPM:
    3500
  • Cooling:
    Air
  • Valves:
    4
  • Valves Per Cylinder:
    2
  • Valve Configuration:
    OHV - Pushrod
  • Bore (mm):
    88.9
  • Bore (in):
    3.5
  • Stroke (mm):
    96.8
  • Stroke (in):
    3.81
  • Displacement (cc):
    1202
  • Displacement (ci):
    73.4
  • Compression Ratio:
    10.0:1
  • Starter:
    Electric
  • Fuel Requirements:
    Premium
  • US Miles Per Gallon (Combined):
    48
  • CAN Liters Per Kilometer (Combined):
    4.9
  • Fuel Type:
    Gas

Brakes

  • Front Brake Type:
    Hydraulic Disc
  • Front Brake Diameter (in):
    11.8
  • Front Brake Diameter (mm):
    300
  • Rear Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    11.8
  • Rear Brake Diameter (mm):
    300

Carburetion

  • Fuel Injector:
    Yes
  • Carburetion Type:
    Fuel Injected

Dimensions

  • Length (in):
    85.2
  • Length (mm):
    2165
  • Width (in):
    32.9
  • Width (mm):
    835
  • Height (in):
    43.3
  • Height (mm):
    1100
  • Wheelbase (in):
    59.3
  • Wheelbase (mm):
    1506.2
  • Ground Clearance (in):
    4.3
  • Ground Clearance (mm):
    110
  • Length (ft):
    7.1
  • Length (ft/ft):
    7
  • Length (ft/in):
    1.2

Other

  • Fuel Capacity (gal):
    2.1
  • Fuel Capacity (l):
    7.9
  • Frame:
    Steel
  • Body Material:
    Steel
  • Side Cover:
    Yes
  • Belt Guard:
    Yes
  • Foot Peg Location:
    Driver
  • Front Suspension Type:
    Telescopic Fork
  • Front Suspension Size (in):
    49
  • Front Suspension Size (mm):
    1244.6
  • Fuel Level Warning Type:
    Light
  • SysModelID:
    85623
  • MfrModelID:
    XL1200X
  • Year:
    2019
  • Manufacturer:
    Harley-Davidson
  • Model Name:
    Sportster®
  • Trim Name:
    Forty-Eight®
  • Family Name:
    Sportster®
  • Product Type:
    Motorcycle / Scooter
  • Manufacturer Type:
    Sportster®
  • Manufacturer Country:
    USA
  • Photo Name:
  • Major Revision Year:
    2016
  • Revision Status:
    Carryover
  • Generic Type 2:
    Cruiser
  • Competitor Code:
    MOT19NDA000
  • Introduction Year:
    2010
  • Manufacturer Recommend Minimum Age:
    16
  • SysTrimId:
    244130
  • SysMakeId:
    10
  • Historical ID:
    224619
  • Data Provider:
    CRS
  • Parent Company:
    Harley-Davidson
  • Display Name:
    Forty-Eight®
  • Engine Displacement to Weight (cc):
    2.21
  • Currency:
    US Dollars
  • Warranty (Months):
    24
  • Destination Charge:
    360
  • Warranty (Condition):
    Limited
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Number Rear Shock Absorbers:
    2
  • Rear Suspension Material:
    Steel
  • Folding:
    Yes
  • Seat Type:
    One-Piece
  • Seat Material:
    Leather
  • Seat Location:
    Driver
  • Seat Height (in):
    28
  • Seat Height (mm):
    711.2
  • Number Of Seats:
    1
  • Stand Type:
    Kick
  • Steering Control:
    Handlebar
  • Tire Brand:
    Michelin®
  • Front Tire Width:
    130
  • Front Tire Aspect Ratio:
    90
  • Front Tire Speed Rating:
    H
  • Front Wheel Diameter:
    16
  • Rear Tire Width:
    150
  • Rear Tire Aspect Ratio:
    80
  • Rear Tire Speed Rating:
    H
  • Rear Wheel Diameter:
    16
  • Front Tire (Full Spec):
    Michelin® Scorcher™ 130/90 B16 73H
  • Rear Tire (Full Spec):
    Michelin® Scorcher™ 150/80 R16 77H
  • Wheels Composition:
    Aluminum
  • Type:
    Halogen
