2019 Harley-Davidson Street® 500

Check Availability

Hi, my name is and I'm interested in this 2019 Harley-Davidson Street® 500 . I'm in the area and you can reach me at or by phone at .

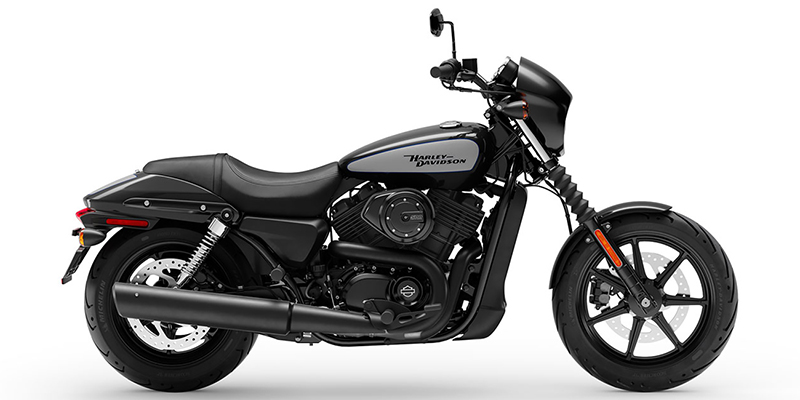

HARLEY-DAVIDSON STREET® 500
Take on the urban grid with 500cc of easy-handling, authentic Harley-Davidson® Dark Custom style.

FIRE ONE UP AND START SHREDDING

500cc Liquid-Cooled Revolution X™ Engine
The blacked-out, liquid-cooled V-Twin engine is built to conquer the hot and heavy traffic of urban streets. You can count on smooth response to the progressive throttle when you want to get through any hole that opens up in front of you.

Optional Anti-Lock Brakes (ABS)
The sophisticated, factory-installed ABS gives you confidence in the saddle knowing your bike's going to behave when you need it.

Light Lift Off Force
Lifting it up off the side stand is easy, thanks to its low weight and low center of gravity. It makes pulling out from the curb feel as effortless as putting your thumb to the starter button.

Low Seat Height
The seat height is just 28-inches. And the frame and seat are narrow, which makes for an even easier reach. The advantages of a low seat also shine when the light turns green. It gives you a low center of gravity for confidence when you’re negotiating traffic, just rolling slow through a parking lot looking for a spot.

Specially Tuned Shocks
Specifically tuned and dialed in for the weight of the bike, the geometry of the frame, and the position of the rider. You’ll experience a smooth ride and excellent handling when you encounter rough urban pavement.

Dark, Aggressive, Custom Look
Sports an all-black two-into-one exhaust, black cast aluminum wheels, blacked-out front end with a café inspired speed screen, and a chrome medallion made of steel on the fuel tank.

Engine

  • Engine Brand Name:
    Revolution X™
  • Engine Type:
    V Twin
  • Cylinders:
    2
  • Engine Stroke:
    4-Stroke
  • Torque (Ft Lbs):
    29.5
  • Torque (Nm):
    40
  • Torque RPM:
    3750
  • Cooling:
    Liquid
  • Valves:
    8
  • Valves Per Cylinder:
    4
  • Bore (mm):
    69
  • Bore (in):
    2.72
  • Stroke (mm):
    66
  • Stroke (in):
    2.6
  • Displacement (cc):
    494
  • Displacement (ci):
    30
  • Compression Ratio:
    10.5:1
  • Starter:
    Electric
  • Fuel Requirements:
    Regular
  • US Miles Per Gallon (Combined):
    64.4
  • CAN Liters Per Kilometer (Combined):
    3.7
  • Fuel Type:
    Gas

Brakes

  • Front Brake Type:
    Hydraulic Disc
  • Front Brake Diameter (in):
    11.8
  • Front Brake Diameter (mm):
    300
  • Rear Brake Type:
    Hydraulic Disc

Carburetion

  • Carburetion Brand:
    Mikuni
  • Fuel Injector:
    Yes
  • Fuel Injector Size (mm):
    35
  • Carburetion Type:
    Fuel Injected

Dimensions

  • Length (in):
    87.2
  • Length (mm):
    2215
  • Width (in):
    33.1
  • Width (mm):
    840
  • Wheelbase (in):
    59.8
  • Wheelbase (mm):
    1520
  • Ground Clearance (in):
    5.7
  • Ground Clearance (mm):
    145
  • Length (ft):
    7.27
  • Length (ft/ft):
    7
  • Length (ft/in):
    3.2

Other

  • Fuel Capacity (gal):
    3.5
  • Fuel Capacity (l):
    13.1
  • Frame:
    Steel
  • Body Material:
    Steel
  • Side Cover:
    Yes
  • Belt Guard:
    Yes
  • Foot Peg Location:
    Driver and Passenger
  • Front Suspension Type:
    Telescopic Fork
  • Fuel Level Warning Type:
    Light
  • SysModelID:
    85622
  • MfrModelID:
    XG500
  • Year:
    2019
  • Manufacturer:
    Harley-Davidson
  • Model Name:
    Street®
  • Trim Name:
    500
  • Family Name:
    Harley-Davidson Street®
  • Product Type:
    Motorcycle / Scooter
  • Manufacturer Type:
    H-D Street®
  • Generic Type (Primary):
    Cruiser
  • Manufacturer Country:
    USA
  • Photo Name:
  • Major Revision Year:
    2015
  • Revision Status:
    Carryover
  • Competitor Code:
    MOT19CBA000
  • Introduction Year:
    2015
  • Manufacturer Recommend Minimum Age:
    16
  • SysTrimId:
    244125
  • SysMakeId:
    10
  • Historical ID:
    224652
  • Data Provider:
    CRS
  • Parent Company:
    Harley-Davidson
  • Display Name:
    Harley Davidson Street® 500
  • Engine Displacement to Weight (cc):
    1
  • Currency:
    US Dollars
  • Warranty (Months):
    24
  • Destination Charge:
    330
  • Warranty (Condition):
    Limited
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Number Rear Shock Absorbers:
    2
  • Rear Suspension Material:
    Steel
  • Folding:
    Yes
  • Seat Type:
    One-Piece
  • Seat Material:
    Leather
  • Seat Location:
    Driver and Passenger
  • Seat Height (in):
    28.3
  • Seat Height (mm):
    718.8
  • Number Of Seats:
    2
  • Stand Type:
    Kick
  • Steering Control:
    Handlebar
  • Temperature Warning Type:
    Light
  • Front Tire Width:
    100
  • Front Tire Aspect Ratio:
    80
  • Front Wheel Diameter:
    17
  • Rear Tire Width:
    140
  • Rear Tire Aspect Ratio:
    75
  • Rear Wheel Diameter:
    15
  • Front Tire (Full Spec):
    100/80 R17
  • Rear Tire (Full Spec):
    140/75 R15
  • Wheels Composition:
    Aluminum
  • Type:
    Halogen
